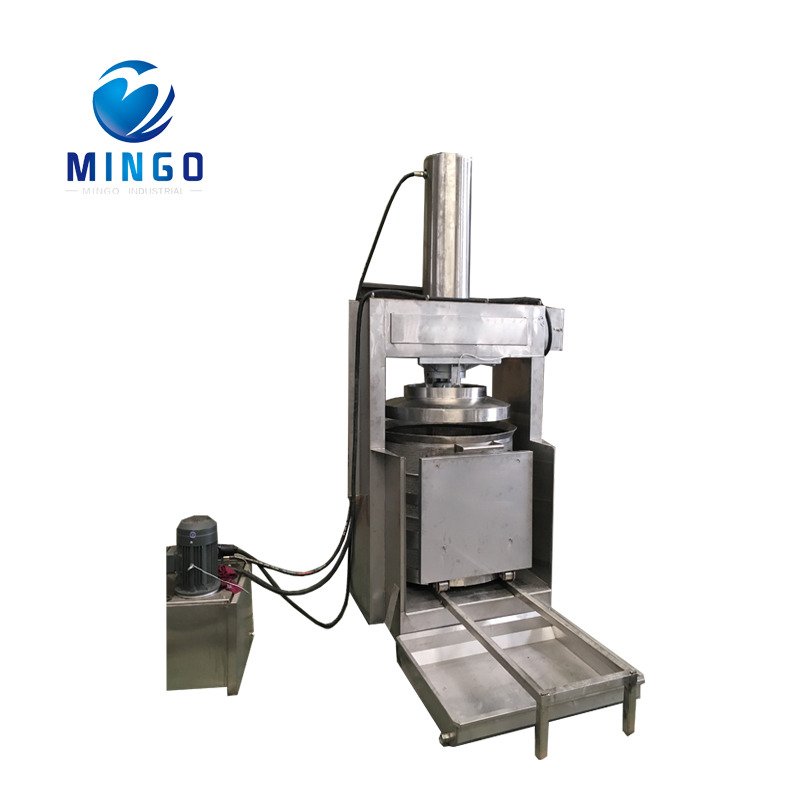

High quality Automatic Fresh Orange Pomegranate Lemon Juice Press Machine
The rice wine press adopts the hydraulic pressing method to remove the moisture of fruits and vegetables and other materials, with high pressure and large tonnage. The hydraulic press is mainly composed of frame, oil cylinder, pressure oil pump, gland, motor, oil tank and barrel. The base, gland and barrel are wrapped with 304 stainless steel and stainless steel plate, which meet the requirements of food hygiene, with low noise, high efficiency and convenient maintenance. We can design the size of the equipment you need according to your output, and determine the tonnage according to the material.
It is suitable for bean products, bean dregs, pickles, pickles, radishes, cucumbers, flammulina mushroom, turnips, mustard, bamboo shoots, slices of bamboo shoots, spicy vegetables, pickled vegetables, turnips, etc. to be squeezed and dehydrated after being pickled. It can also be used in rice wine, juice brewing and other industries.
1. The use of shaftless screw, small contact area with materials, low friction, can improve the extrusion efficiency; and no blockage, no winding phenomenon.
2. The equipment is made of stainless steel 304 with high strength, good corrosion resistance and long service life.
3. Manual and automatic switchable: generally, the manual mode is used first, and when it is down to a certain position, it is switched to automatic mode. After the automatic pressing time is completed, the pressure plate is reset automatically.
4. Press pressure and time can be set according to process requirements
5. The driving device adopts shaft mounted direct driving mode, which is stable and reliable in operation and energy saving.
6. The outlet is equipped with spring baffle to extrude the pressure and improve the dehydration rate.
7. Except for the inlet and outlet, the rest are sealed structure, and the use environment is clean and sanitary.
8. Double barrel rotation type, interchangeable loading and unloading and pressing materials, double the production capacity.
9. For products requiring juice collection, filter cloth shall be provided in the barrel to facilitate slag extraction.
10. The base of the pressing plate is super flat with special technology to ensure the continuity and stability of the pressing plate when it is pressed down, and to ensure the even dehydration of the material.
11. The material basket is processed by one-time molding process, the inner surface is refined and polished, easy to clean, the sanitary dead angle is eliminated, and the material organization structure is not damaged and the material is discharged clean. The pressing plate, material barrel and frame body of the machine are made of acid and alkali resistant 304 stainless steel.
12. The hydraulic oil cylinder adopts four sealing forms, which greatly improves the service life of the cylinder, and at the same time, the hydraulic oil seeps out to pollute the food.
13. The operation panel is controlled by oil pressure, and the press interval can be set at will, so as not to deform the equipment due to the large pressure in the use process, thus prolonging the service life of the equipment.
| Model | Capacity (kg per time) |
Volume(L) | Power(kw) | Weight(kg) | Size(mm) |
| 200L | 140 | 200 | 2.57 | 700 | 1900*1180*2100 |
| 300L | 210 | 300 | 2.57 | 800 | 2100*1290*2100 |
| 400L | 280 | 400 | 2.57 | 850 | 2300*1600*2100 |
| 500L | 350 | 500 | 2.57 | 900 | 2300*1600*2300 |
| 200L Two cylinder replacement type | 280 | 400 | 2.57 | 1000 | 3500*1180*2100 |
| 300L Two cylinder replacement type | 420 | 600 | 2.57 | 1100 | 3700*1270*2100 |
| 400L Two cylinder replacement type | 560 | 800 | 2.57 | 1150 | 4000*1280*2200 |
| 500L Two cylinder replacement type | 700 | 1000 | 2.57 | 1200 | 4100*1280*2200 |
Shandong Mingo Industrial Equipment Co., Ltd. is located in the coastal open cities in the southeast of Shandong Peninsula, known as the "hometown of dinosaurs" in China. It is about 100 kilometers away from Qingdao port in the East, about 70 kilometers away from Rizhao Port in the South and Weifang.
The company specializes in the production of: pasteurization assembly line, pasteurization machine, cleaning machine, conveyor, food dryer, vacuum mixer, press, vacuum packaging machine and other food machinery and food industry related supporting series of stainless steel products.
1.Can I customize the machines?
Yes,we have a professional R&D engineer team to design the product according to the customers requirements.
2.How long can you deliver the machine?
We usually delivery in 30-40 working days after deposit.
3.How long is the guarantee?
We promise guarantee as one year for non-human damage factor.
4.How can I pay?
We accept T/T,L/C,West union,Trade assurance on Alibaba.
5.How should I do if meet some trouble while using?
We can supply English manual book and also can supply on-line (including video) service after sales to help customers to solve problems.
